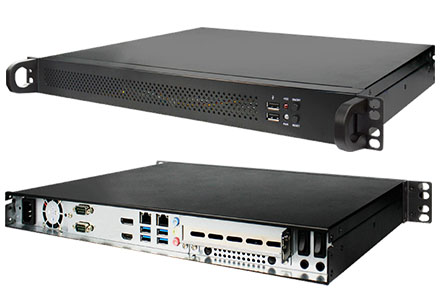

Jetway HBJC150I98-H310-B (Intel H310, LGA1151) [19" Case, 2x LAN]

Jetway HBJC150I98-H310-B (Intel H310, LGA1151) [19" Case, 2x LAN]
  • LGA1151 !
  • H310 Chipset !
  • 19" Enclosure !

  • Intel® 8th & 9th Core i3/i5/i7/Pentium Processor
  • Support 2* DDR4 2666 SO-DIMM up to 32 GB
  • 4* USB3.1, 2* USB2.0, 2* COM, 1* HDMI , 1* DP, 2* RJ45, Line-out/Line-in/MIC
  • M/B Form Factor : Mini ITX (170x170mm)
  • 1U 250W FLEX Power


Share

539.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
Dimensions – 330 (W) x 192 (D) x 44 (H) mm
MB model – MI98-00 / Mini ITX (6.7-in * 6.7-in, 170 * 170mm)
Part No Non-Wifi Wifi
– HBJC150I98-H310-B – HBJC150I98W-H310-B
CPU – Intel® 8/9th Core i3/i5/i7/Pentium/Celeron LGA Processor (TDP: 95W)
BIOS – AMI Flash ROM
Memory – 2* Dual CH non-ECC DDR4 2666 MHz SDRAM SO-DIMM up to 32GB
Network – 2* GbE (1*Intel i219V, 1* Realtek 8111H)
Storage – 2 * 2.5” or 1 * 3.5” SATA3 6Gb/s internal drive bay
– 1 *M.2_SSD (M key-2242/2280) support NVMe
Expansion – 1* M.2 E-key 2230 (PCIex1/USB2.0)
– Support onboard TPM2.0 (MI98-02) / optional
Rear I/O Port – 4 * USB 3.1 (Gen. 1)
– 1 * HDMI (Max Resolution: 4096×2160@30Hz)
– 1 * DP (Max Resolution: 4096×2304@60Hz)
– 2 * RJ45 (1*Intel i219V, 1* Realtek 8111H)
– 1 * Mic , 1 * Line in , 1 * Line-out
– 2 * COM (COM 1 support RS232/422/485)
– AC-in
Front I/O Port – 1 * Power button
– 1 * Reset button
– 1 * Power LED
– 1 * HDD LED
– 2 * USB 2.0
Power Source – 1U 250W FLEX POWER
– AC 90~240V input
Certification – CE, FCC, LVD, RoHS
Environment – Operating Temperature : 0°C~50°C
– Storage Temperature : -10°C~70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Packing – Net Weight：3.5 KG
– Gross Weight：4.5 KG
– Color Box Dimension：560(W) x 400(D) x 140(H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
